I’m a big fan of the RaspberryPi single board computers (SBCs) and have been using them since the very first model was released. (I still have the first model even now!)
Over the years I have used RaspberryPi computers for all sorts of things. These days I use them for running services on the local LANs here at home along with a number of virtual machines providing services both locally and publicly on the internet. (Yes, you can run virtual machines (VMs) on RaspberryPi computers)
I currently have 4 x RaspberryPi 5 SBCs running 24/7 and have had them stored in a simple rack that I designed when I first got into 3D printing. The rack worked ok but, it was difficult to get access to the Pi’s without removing those around the one I wanted to access. This is a real nuisance when you have services running on them all.
I’ve now had my 3D printer for a while and decided it was time to design a better solution. Before I set about diving into the CAD software I decided to have a look on Makerworld to see if anyone else had already come up with something more suitable.
The nice thing about this design is that each Pi module connects to the other using a simple sliding, locking pin system. This means that over time you can add more and more modules to the rack as your RaspberryPi collection grows. The other nice thing is that each Pi SBC is held on its own removable sled making it possible to remove each Pi with ease and without disturbing any of the others.
I downloaded the design into BambuStudio and went through all the component parts. I was really pleased to see that there were two sizes of module available, a single board Pi only module and a tall module for housing a RaspberryPi with a HAT installed.
Since the 4 x Pi5’s that I am using have either an NVME + 2nd Gigabit Ethernet HAT or a NVME SSD Baseboard installed I will need the taller module for each unit.
To make it easy to identify each SBC in the rack I printed each module in the same colour as the hostname of the Pi, bluepi, redpi, greenpi, orangepi and a spare slot for purplepi when I get it.
My RaspberryPi rack with 4 x Pi5’s in place and operational
These 4 little Pi’s work hard and CPU temperatures can exceed 50 degrees Celsius very easily. They all have the Official Pi Cooler with fan installed however, this doesn’t come on until the CPU reaches 50c and so I decided to added some extra cooling in the form of a small USB fan onto the back of each module. This reduces the operating temperature of each Pi down to around 25c under full load.
The purple slot on the end is a spare ready to house another Pi SBC. I’d love another Pi5 16GB model but, at the current ridiculous prices it makes no sense to invest in another and so I will fit my spare Pi4 into the slot for now and find something for it to do.
This has been a fun little project to print and put together and will provide the perfect solution to my Pi management woes.
The articles I write for the blog are mostly technical but, I thought it was about time that I wrote this article as it’s been buzzing around inside my head for some time now.
So, what are the 5 things that I have found revolutionary in my shack that have brought new, exciting ideas and projects to life making amateur radio more enjoyable.
1: A RaspberryPi Single Board Computer
RaspberryPi 5 Single Board Computer
Ever since the first RaspberryPi Single Board Computer (SBC) was released I’ve been a huge fan. This little credit card sized number cruncher has been the base for so many projects, it has to be the first on my list.
The RaspberryPi SBC has been through a few iterations since its initial conception and is now powerful enough to take on most tasks that any radio HAM is going to throw at it.
So, what have I done with them?
Well I’ve used them to run Node-Red services for my many web app dashboards that control things like my QO-100 Satellite Ground Station, UPS power monitoring, Internet speed graphs, server and virtual machine monitoring, AllStarLink nodes, hosting websites, building an SDR shortwave receiver, running HAM Clock / Open HAM Clock, developing my own software, hosting virtual machines and a whole host of other fun and interesting things. I’m even writing this article using my RaspberryPi 500+ computer that is my daily desktop PC.
There are an endless number of things you can do with a RaspberryPi to bring new life and functionality to your radio hobby.
Want to get into Amateur TV? Want to decode digital modes real time? Want to track aircraft in the sky real time on a virtual radar screen? Want to search the shortwave bands for stations of interest? Want to host your own blog and website?
All these things and a lot more are easily within reach with a RaspberryPi.
The RaspberryPi is only limited by your imagination, the more imaginative you are the more your number crunching little friend will do.
2: A 3D Printer
Bambu Lab A1 Combo 3D Printer
Every HAM should have a 3D printer. These manufacturing marvels bring a new level of quality, design and simplicity to your HAM radio projects. I’ve found it incredibly useful since venturing into the rabbit hole that is 3D printing. When I think back to the weeks and months of my life I’ve spent making cabinets and boxes out of sheet metal, aluminium or wood for the numerous projects I’ve built over the years, a 3D printer would had made my life so much easier. 3D printing has revolutionised the making of things for the Amateur Radio home brewer.
There’s a multitude of useful things on websites like Printables, Thingiverse , Makerworld and others where you can just download the files and print high quality designs for all those things you’ve wanted to do but, don’t have the time or inclination to craft by hand.
The real satisfaction with 3D printing comes from designing your own things and making them. My first project was to design and print a fan cooling system for my Xiegu XPA125B amplifier.
From the factory the amp is passively cooled and doesn’t take long for the heat-sink to become saturated resulting in a high operating temperature. I was never happy with this and so was determined to resolve the problem.
Getting to grips with TinkerCAD was a bit of a vertical learning curve but, after a few mistakes and design mishaps I soon had it under my belt and pressed on with designing the cooler unit.
Designing the Xiegu XPA125b cooling system using tinkerCAD.
It’s not until you start designing and manufacturing things that you suddenly realise how much effort goes into them but, I persevered and over the period of about a week or so I had a perfectly fitting, operational cooling system that kept the amp super cool regardless of how long I waffled on for on the HF bands.
Once you’ve got your first design made you suddenly find yourself wanting to improve it and add things. In my case this was adding a Hermes Lite 2 holder to the top of the amp cooler and then a top shelf to hold my cross needle SWR and power meter.
Since then I’ve progressed massively with my designs and have even designed and printed things for other HAMs and family members, it’s totally addictive!
I can highly recommend the Bambu Lab A1 Combo (As shown above). It’s a quality piece of equipment that has operated faultlessly since purchase. Right now it’s printing a case for my RaspberryPi 4, just one of the many projects I’ve used it for since becoming a happy owner.
RaspberryPi 4 case from printables.com
Go on, release your inner creativity and treat yourself to a 3D printer, you won’t regret it and it’ll help you bring to life all of those radio projects you’ve dreamt of doing but, never got round to starting.
3: An AllStarLink Node
M0AW AllStarLink Node 61928 sitting on the equipment rack
Many people say that using VOIP over the internet isn’t real radio, I know because I used to be one of those people however, it has become an invaluable resource for keeping in touch with people all over the world.
Being part of an online HAM Radio Community it’s important that as a group we are able to talk to each other regardless of where we live, what bands we have access to and whether there is any propagation.
The AllStarLink (ASL) network gives global FM quality audio no matter where you are in the world. We use it daily for our breakfast net, general chatter throughout the day and even hold a weekly Matrix ASL Net on a Thursday evening.
Using our VHF/UHF handhelds (Real Radios!) and an easy to make AllStarLink Node we’re able to join in with the conversation regardless of propagation, licence type or distance, it really is great for bringing people together.
With devices like the SHARI and AIOC board now being readily available for minimal cost it really is very easy to get onto the AllStarLink network and talk to people even if you live in an antenna restricted location.
Why be alone when you can use the Matrix ASL node ( 642332 ) and join in the conversation.
4: Node-Red
M0AWS – Updated NodeRed QO-100 Dashboard with PTT button
Node-Red is a low-code programming tool for event-driven applications.
Node-RED’s goal is to enable anyone to build applications that collect, transform and visualise their data; building flows that can automate their world. Its low-code nature makes it accessible to users of any background, whether for home automation, industrial control systems or anything in between.
I’ve been using Node-Red for a number of years now and have developed a suite of web app’s that control and monitor just about every aspect of my Amateur Radio hobby and IT infrastructure.
Node-Red forms an integral part of my QO-100 Satellite Ground Station providing control of both the uplink and down link radios whilst synchronising the VFO’s, controlling filter selection and more, all from one simple to use interface using nothing more than a web browser.
It doesn’t stop there, my AllStarLink (ASL) nodes are also managed through a user friendly Node-Red Dashboard that removes all the need for technical know how and makes ASL node management as simple as clicking on a button to connect or disconnect to the many global networks.
Much of this functionality is achieved without writing a single line of code. If you can use a mouse, drag and drop objects on the screen you can develop Node-Red web app’s, it really is that easy.
M0AWS Interactive Log Flow
It doesn’t end there, Node-Red is great for presenting data in easy to digest formats.
Whether it be HAM Radio Log data presented on an interactive world map or monitoring of your server, RaspberryPi, virtual machine or UPS using gauges and graphs, this can all be achieved easily with nothing more than a mouse. There’s no need to spend hours writing thousands of lines of code, just drag and drop a few nodes onto the screen and join them up. You’ll be amazed how easy it is.
I believe every Amateur Radio enthusiast should have Node-Red available in their radio shack. It’s easy to install on your RaspberryPi 4 or 5, Linux or Windows PC and Apple Mac with the same great functionality available on all platforms.
Once you’ve developed your first web app you’ll suddenly find a million more ideas will come into your head and before you know it, you’ll be where I am today with Node-Red at the centre of your radio hobby.
5: A Hermes Lite 2 HF SDR Transceiver
For years I used black box HF radios from the big 3 manufacturers along with the odd radio from the smaller enterprises like TenTec but, they all had their foibles and there was often nothing I could do about it.
My last acquisition from the big 3 was a Yaesu FTDX10, a competent hybrid SDR radio with a good receiver however, the menu system is terrible, the button layout not much better and the user experience not as good as it could be. Of course the software is closed source so there is nothing you can do about it. The radio did its job but, it wasn’t fun to use, it wasn’t what I really wanted and it didn’t put a smile on my face.
I looked at moving to software defined radios (SDR) but, with prices in the many thousands of pounds bracket and the software being closed source I came to the conclusion that they wouldn’t give me what I really wanted either.
So what was it that I was searching for?
Thinking long and hard about it I came to the conclusion that what I really wanted was a radio that gave me the same satisfaction that OpenSource software has given me for decades, namely an HF radio that I have complete control over, from the hardware through to the software and everything in between.
I wanted something that I could tailor to my exact needs. Something that was built using open hardware and open software, something where if I wasn’t happy with it I could change it, improve it and do the things I wanted with it.
At this point my search for the ideal radio headed in a completely different direction.
Xiegu XPA125b Cooler with Hermes Lite 2 cradle – front view
The Hermes Lite 2 SDR HF Transceiver (HL2) has been around for a number of years. I was first introduced to it by Michael, DK1MI and then Roger, G8VLR via the Matrix. Both Michael and Roger use the HL2 on a regular basis and have often waxed lyrical about how good it is.
Being designed by radio amateurs for radio amateurs it’s based on an open architecture from the ground up. Being an OpenSource junky this really appealed to me and as I looked deeper into it from both a hardware and software point of view I soon realised that it had the potential to be exactly what I was looking for.
It wasn’t long before I found myself on the Makerfabs website placing an order for the HL2 mainboard, filter board, I/O board and case. A couple of weeks later it arrived and I dived head first into the SDR rabbit hole.
2 years later and the HL2 has become my main HF radio in the shack. Partnered with a Xiegu XPA125B amplifier and PiHPSDR software running on my Kubuntu Linux PC it is everything I have been looking for in an HF radio.
I’ve made modifications to the software to suit my operating style and needs with the user interface being exactly how I want it, no unnecessary buttons or knobs, just the controls that I use on a daily basis cleanly placed in a logical, easy to use layout, the way I want it.
My understanding of software defined radio and how it works has improved a hundred fold. Having access to the software and being able to go through the code and understand the architecture has been an interesting journey and one that has enhanced my radio enjoyment considerably. I now have a smile on my face every time I go on air.
Do I miss the FTDX10?
No, not in the slightest!
So, those are the 5 things that I feel have revolutionised my radio amateur hobby and made it a more enjoyable experience. I’m sure over time I will add to this list as I venture down future rabbit holes in our wonderful radio hobby.
Following on from my previous article on using Node-Red to build interactive log maps I’ve now reworked the flow to make it more efficient with less Javascript.
The original flow had a function that handled the issue of FT4 contacts being recorded in two different ways depending on which app you use for your FT4/8 operations.
<mode:4>MFSK <submode:3>FT4
or
<mode:8>MFSK FT4
The code I wrote to handle this wasn’t particularly elegant and so I decided to remove the code entirely and just use a simple change node.
M0AWS New node to handle FT4 more efficiently
This is the great thing about Node-Red, there’s always more than one way to do something.
With this fix in place and the old code stripped out of the format generic payload function, the new flow is much tidier and easier to comprehend.
M0AWs Updated ADI Log Map flow
With testing complete and the two maps now live on my website the flow is finally ready for release into the wild.
If you fancy presenting your ADIF logs in a more visual, interactive format then just download the flow below and import it into your Node-Red flow editor.
Don’t forget that you will need to change the path to the log files in the file read nodes to suit your setup and change the location data in the My QTH trigger to match your callsign and location. Other than this the flow should just work.
I’ve not been on the radio much over the last few weeks as I’ve had my head down other radio related rabbit holes.
One of the rabbit holes is a Node-Red project to make my online logs a little more interactive. For sometime now my logs have been displayed on my website as nicely formatted, searchable HTML pages however, they don’t really allow the viewer (myself included) to see the global coverage of all the contacts so, I decided to write a Node-Red flow that would do just that.
M0AWS Interactive Log Flow
The flow itself isn’t too complicated and basically consists of reading in the individual ADIF formatted log files, processing the data and then sending the data in the correct format to the map node for display.
I’ve had to write a few functions to handle the processing of the ADIF formatted data but, these aren’t particularly complex and are fairly easy to understand even if like me, you’re not a Javascript programmer.
The flow is working perfectly however, I’m in the process of reworking the format generic payload function to reduce the amount of code and make it more efficient.
M0AWS SSB / CW / FreeDV Interactive Log World Map
M0AWS Interactive Log Map Layers Menu
The flow generates two maps, one for voice / CW /Satellite contacts and the other for WSJT-X FT4/8 contacts. Every pin on the map is colour coded by band with satellite contacts being denoted by a satellite icon.
Each pin / icon on the map is clickable and reveals the data of the QSO being displayed.
In the top right-hand corner of the map there is a drop down layermenu that allows the viewer to filter by band thus reducing the number of icons on the screen at any one time.
Seeing the data presented on a map really brings my logs alive. An example of this is that I had no idea I’d worked so many stations in India on the QO-100 Satellite.
The small icons in the pins show a microphone for SSB/FM/FreeDV contacts and a downwards pointing triangle in a box for CW contacts. Sadly I couldn’t find a Morse key icon in the collection available.
M0AWS filtered view of QO-100 Satellite contacts
I only use FT4/8 for testing new antenna designs however, it’s interesting to see the global coverage accomplished with this weak signal mode.
M0AWS WSJT-X FT4/8 Interactive Log World Map
Once I’ve finished rewriting the format generic payload function I will make the flow available for download here so that others can also create an interactive view of their radio logs.
If you want to have a look at the maps and try them out for yourself, they are available under the Logs menu above.
This Node-Red instance is running in a virtual machine (VM) on a 16GB RAM RaspberryPi 5 that is also running a number of other VMs at the same time so, it’s safe to say it’s not heavy on CPU and will run on the older Pi4 as well.
RaspberryPi computers are now moving into the realm of being powerful enough to replace the traditional desktop PC. My most recent purchase, a RaspberryPi 500+ is proof of this as it has been my daily desktop PC since it’s arrival.
One of the things I use heavily are virtual machines. They’re great for developing, prototyping and running new services. With the ability to snapshot, rollback and backup in an instant, virtualisation helps to reduce the development and test time for many of the programs and services that I’m playing with.
With RaspberryPi computers now supporting 16GB of RAM and M.2 SSD drives there is no reason for not taking advantage of virtualisation.
To this end I decided to test running some virtualised loads on my new 500+ with the plan to deploy to 16GB Pi5’s with SSD drives in place of more expensive Intel based computers.
On my Intel based machines I use QEMU, KVM and Virt-Manager to manage the multitude of virtual machines (VMs) I have running here. Since this is a solid, high performance platform for running VMs I decided to take the same route on the 500+
Installing the necessary packages is extremely simple, just one simple apt command:
# Main ethernet
# Setup Bridge called br1 on eth0
allow-hotplug eth0
iface eth0 inet manual
auto br1
iface br1 inet static
address 192.168.0.100
network 192.168.0.0
netmask 255.255.255.0
broadcast 192.168.0.255
gateway 192.168.0.1
dns-nameservers 192.168.0.5
bridge_ports eth0
bridge_stp off
#
#
Once this is done reboot your RaspberryPi and check you have access to your local LAN and of course the internet. You will now also inherit the two new groups that you added yourself to above.
Note: If you are using NetworkManager open the network settings app and create a bridge on eth0. You can also use the nmtui copmmandline app if you prefer.
At this point you’re ready to create your first virtual machine.
It’s important to have an arm64 version of Linux in ISO format that you can use to install into your VM. My preferred distro is Debian and so I downloaded the Debian 13 Arm64 netinst ISO from the debian.org website.
From the main menu start “Virtual machine Manager” or on the commandline type:
virt-manager
QEMU Virtual Machine Manager
Click the Create new VM button and then navigate to where you saved your ISO file and select it as the installation media.
Virtual Machine Manager – Local install mediaVirtual Machine Manager – Select ISO file
Once you’ve chosen your ISO you’ll need to configure the actual VM. Start by setting the amount of RAM and number of virtual CPUs you want the VM to have.
Virtual Machine Manager – Configure RAM and CPU
Next set the size of the virtual disk that the VM will use.
Virtual Machine Manager – Create virtual disk
Finally, give the VM a name and set its network device to br0 as created above. Click finish and your VM will boot.
Virtual Machine Manager – Name VM and select bridge interface
Now it’s just a case of going through the standard Debian install process to build your Debian VM.
Once the installation is complete and the VM has rebooted you will have a functional Debian computer ready to use for whatever you like, just like a physical PC but, in virtual form. You’ll find that the VM runs as fast as the actual physical machine thanks to the kernel based virtualisation.
In December 2024 the RaspberryPi 500 was announced with great fanfare in the maker world. Following on from the RaspberryPi 400 series, the 500 model moved the keyboard based 80’s style desktop computer to the new faster CPU and RP1 I/O chip technology that came with the RaspberryPi 5 model.
This was hailed as a big step forward in performance for the 500 series however, for me it was disappointing. The problem with the 500 is that it didn’t come with an M.2 NVME SSD connector and was based around the much slower SD card storage solution.
All of my Pi5 models have been upgraded with the Pimoroni SSD Baseboard and a 250GB M.2 NVME SSD drive making a huge improvement in performance for the little single board computer (SBC).
Along comes the Raspberry Pi 500 and once again it’s hobbled by the fact that it has no SSD support on the motherboard. What was ridiculous was that all the pads and tracks were on the circuit board but, not populated. This annoyed many in the RaspberryPi community, myself included as the new faster machine was once again held back by slow SD card I/O.
What made it even worse was the fact that the 500 didn’t have the facility to add an M.2 NVME SSD via the PCIe interface like on the Pi5, making it even more disappointing.
Needless to say I, along with many others didn’t put my hand in my pocket to purchase a 500 as it would be a huge step backwards from my Pi5’s.
Step forward to September 2025 and RaspberryPi announce the new RaspberryPi 500+, the computer we all hoped for 12 months earlier.

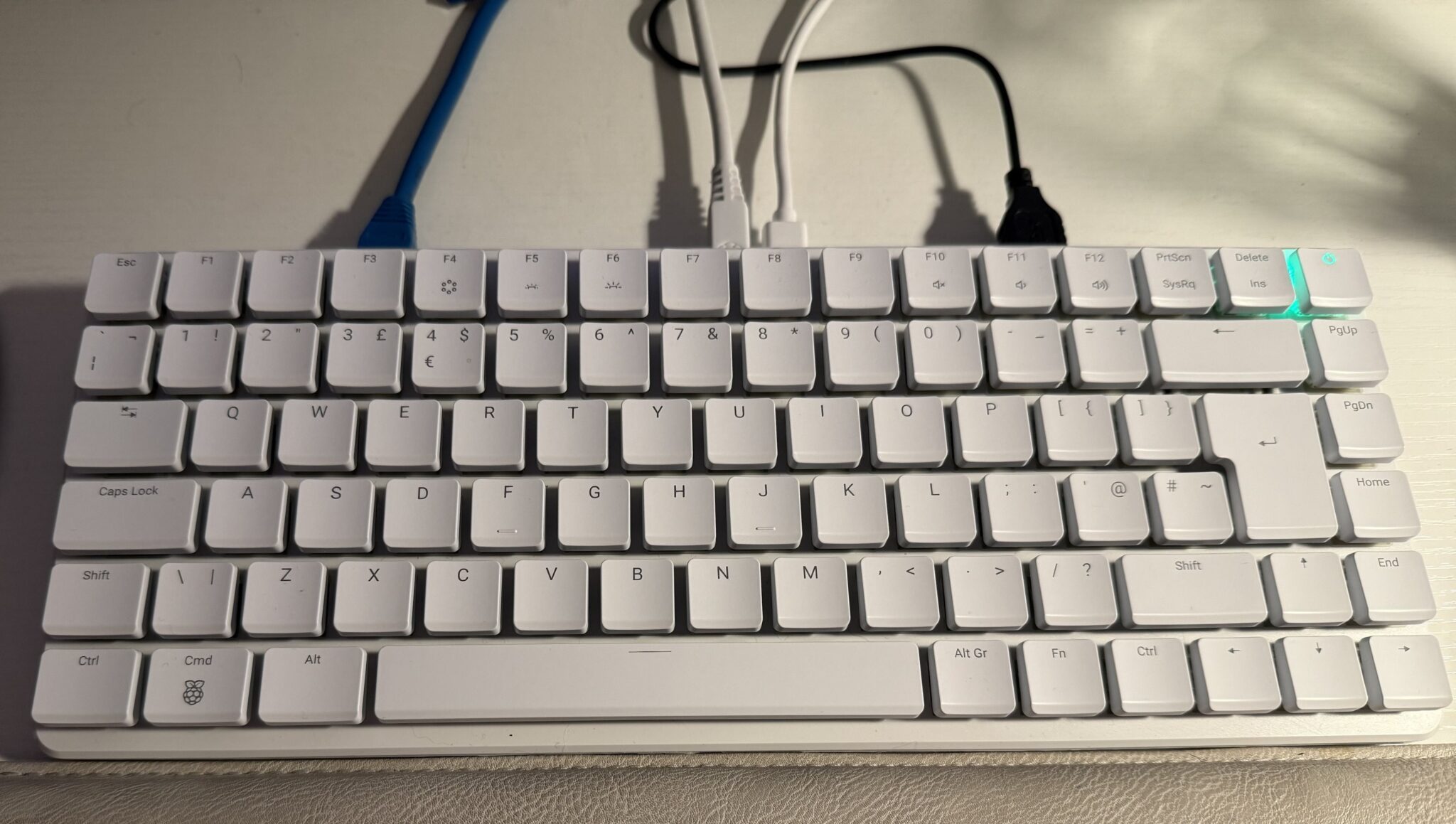

My RaspberryPi 500+ that I’m using to write this article
I ordered my 500+ from Pimoroni the moment the email saying it was available with its new high spec dropped into my inbox. Being one of the first to splash the cash I got a 20% discount off the price too, which made the purchase even easier.
A few days later the 500+ landed on my doorstep and I hastily unpacked it.
The 500+ comes with 16GB of RAM and a 256GB M.2 NVME SSD drive from the factory, exactly what we all wanted from the original 500. To everyone’s surprise the 500+ also comes with a new Clicky Gateron Blue KS-33 mechanical keyboard. This isn’t something I was expecting but, it was a nice surprise!
Connecting the 500+ to my mouse, ethernet cable, 4K monitor and official PSU it burst into life. The SSD comes preloaded with RaspberryPi OS and boots first time, no messing with loading ISO images to SD cards here!
The first thing I noticed was that the 500+ feels snappier than my Pi5, even though they both have the same SSD drive. Apps start just that bit quicker on the 500+ and copying files around feels quicker too.
Could this be because the SSD is now directly on the motherboard rather than at the end of a ribbon cable like on the Pi5?
The new keyboard is very different to use compared to the old 400/500 and the official RaspberryPi keyboard for the Pi SBC’s. It’s very clicky and slightly wider with more space between the keys. Initially this is annoying as it creates typo hell but, after some time your muscle memory adjusts and your typing gets back to it’s normal typo free experience.
The new keyboard is a nice improvement over the original 500 and makes the hiked price of £178.00 (with 20% discount) worth paying. The new keyboard is also backlit and can be adjusted to a range of colours and effects. I settled on having the keys light up in red once pressed as this is much easier on the eyes.
Since I’d been using a Pi5 with SSD as my desktop PC in the home office for over a year now I wanted to move my custom KDE-Plasma setup over to my new 500+ in place of the rather sparse RaspberryPi OS desktop that comes as standard on the 500+ SSD.

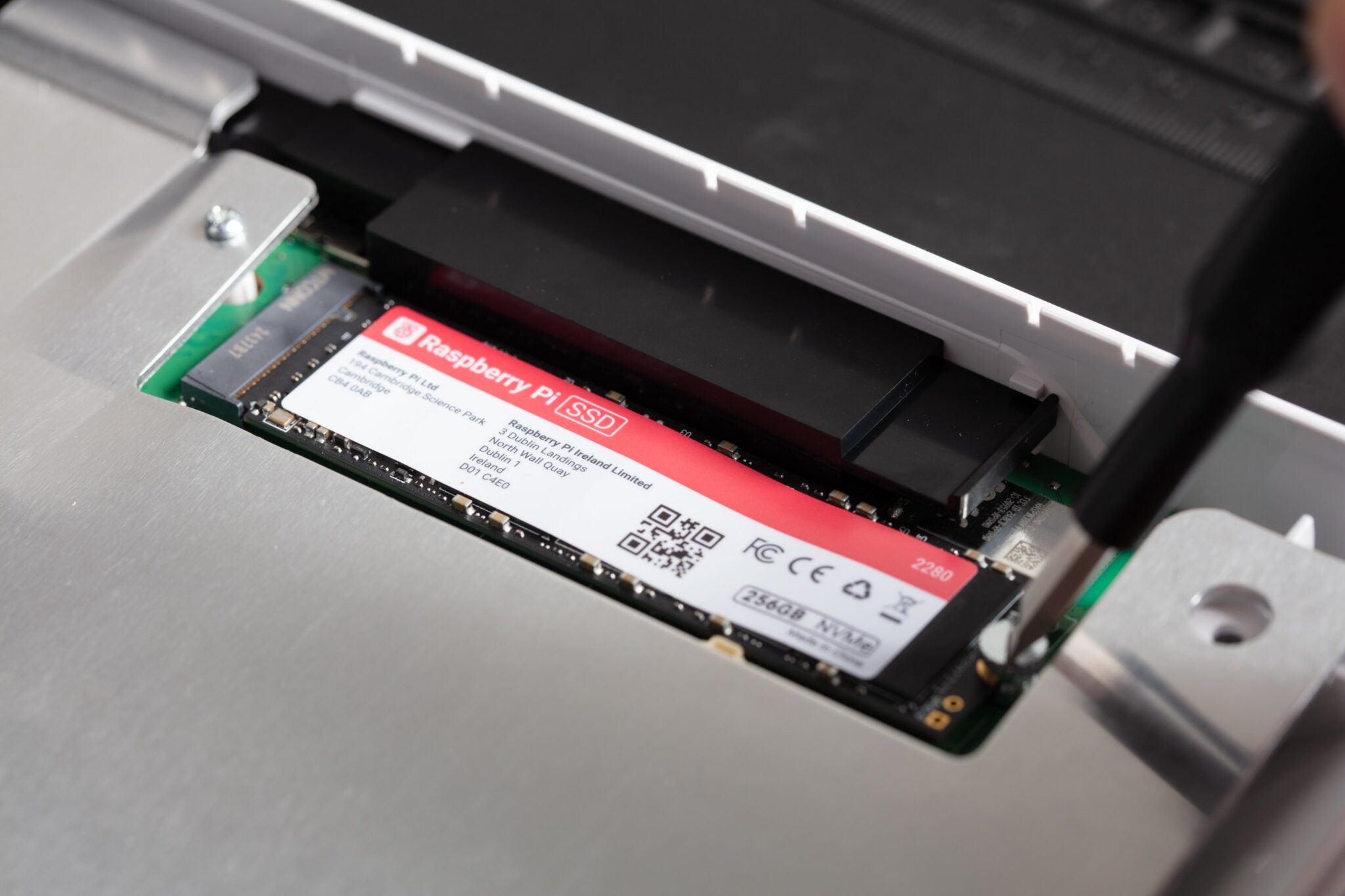

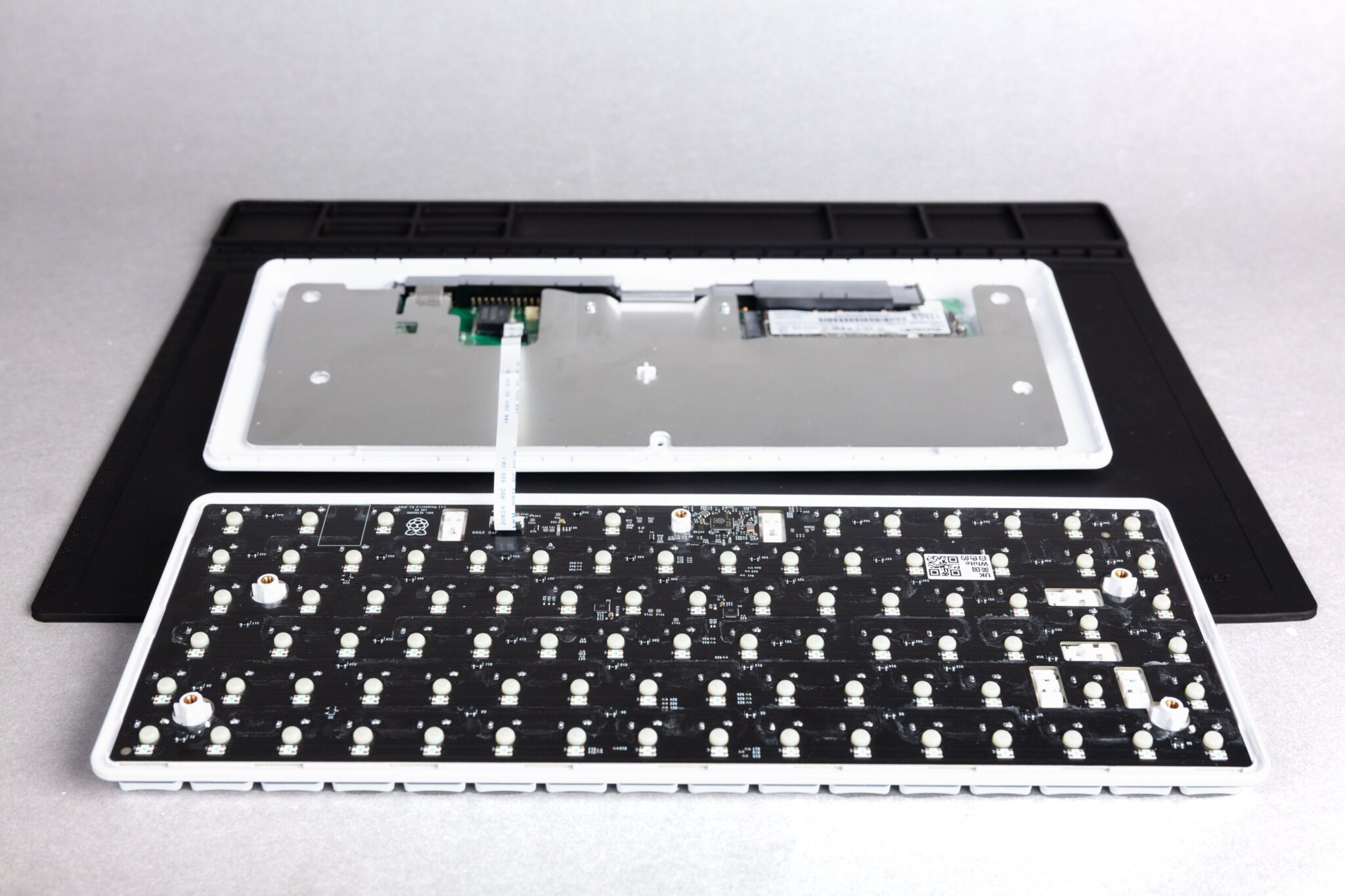

RaspberyPi 500+ open for SSD replacementRaspberryPi 500+ M.2 NVME SSD Drive
Opening the 500+ is relatively easy using the supplied spudger to tease the keyboard top and bottom apart once the screws have been removed.
Upon splitting the top and bottom sections you immediately become aware of the rather fragile looking ribbon cable that connects the keyboard to the motherboard. Access to the SSD drive is very good and it only took a minute to swap the drives over.
Gently clicking the keyboard back to the bottom half of the case and inserting all the screws I reconnected the computer to all my peripherals and switched it on.
In no time at all my favourite KDE-Plasma desktop and all my files and apps were at my fingertips just as they had been for the last year on my Pi5. An easy transition to the new 500+ now means I have a spare Pi5 and 250GB SSD for another project.
I must say that it would had been much nicer if there was a little removable panel on the bottom of the 500+ providing access to the SSD. This would had made it so much simpler to change the SSD drive without having to find the necessary tools to take the unit apart. Maybe an improvement for the 600+ next year!
The other thing I’ve noticed is that the 500+ runs considerably cooler than the Pi5 with the official cooler. My Pi5 would often reach 50 deg C however, the 500+ rarely gets above 30 deg C.
Overall I’m really pleased with my new RaspberryPi 500+, it’s the RaspberryPi I’ve been wanting in my home office for some time and finally it’s arrived.
Was it worth waiting for? Absolutely! It’s everything the 500 should had been at the outset.
Over the last few weeks I’ve been working on my install-pihpsdr script to build a version of the DL1YCF PiHPSDR fork that will work with the Adalm Pluo, Pluto+ and LibreSDR transceivers.
Since I don’t own any of these devices, Steve M0XVT has loaned me his Adalm Pluto and LibreSDR devices to test with.
Initially neither of the devices would work with the PiHPSDR build that my script was creating. After some investigation I found this was due to the fact that the developer build script was only building the SOAPYSDR library, it wasn’t building the modules for each device type.
This was easily fixed by adding some extra code that would build the necessary SOAPYSDR modules so that the devices were discovered on the local LAN.
Since I had the devices to hand I took the opportunity to test the updated build script on a number of Linux Distro’s that I have to hand.
PiHPSDR running on Linuxmint 22.1 Cinnamon Edition using the LibreSDR transceiver
I tested the updated build script on Kubuntu 22.04LTS, Linuxmint 22.1 Cinnamon Edition and RaspberryPi 4/5 running the latest RaspberryPi OS 64bit version.
These all worked great with the transceivers and will now make a great platform for QO-100 stations that use either the Adalm Pluto, Pluto+ or LibreSDR devices.
Of course this build of PiHPSDR will also work with the Hermes Lite 2 and RadioBerry devices that I use most of the time in my own radio shack.
The updated PiHPSDR install script can be downloaded from my original blog article on the subject that is located here: https://m0aws.co.uk/?p=3686
The updated build script will most likely work on most Debian based Linux distro’s and build a working version of PiHPSDR. If you find a distro where you have problems please email me and let me know the details and I’ll happily look at the issue and try to resolve it.
Thanks to Steve for the loan of his precious SDR transceivers, I had a lot of fun with them!
Let me start this article by confessing that I hate Snap on Linux!
The whole idea that you’d need a container type environment to install an application on a Unix system is very far from where I want to be.
It annoys me that snaps are updated automatically too. I know you can disable this but, I shouldn’t have too. App’s should only get updated when I want to update them, not before.
What I really hate is the fact that the Snap back end system is proprietary and owned solely by Canonical, the Ubuntu people. This goes against my OpenSource ethos.
Sadly I had to install Snap to get the Signal messenger app installed on my RaspberryPi 5 desktop computer. App’s installed via Snap are extremely slow to start, run slow and are heavy on resources. Snap also mounts a whole bunch of dependency Snaps via loop devices to make the app work. Snaps make a real mess of your system.
The final straw that broke the camel’s back for me was when Snap did an automatic upgrade to Signal to a version that has a serious bug in it causing it to crash a minute or so after startup. I initially reverted to the previous version to get it working again but, sure enough Snap did another auto-update and broke it again.
This time I couldn’t revert back to the previous version as Canonical, in their infinite wisdom decided to remove the previous version of Signal from their Snap store!
At this point I removed the Signal Snap from my computer, along with all the “hanger on” snap packages that were clogging up the RaspberyyPi 5 and finally did a complete purge of snapd using dpkg to get rid of all the horrendous snap mount points on the file system.
After a reboot I then went hunting for the Signal messenger app source code. Looking through the code it’s not a 5min job to get it compiled on a RaspberryPi and so I followed a few of the forked versions to see if someone had already done all the hard work for me.
After disappearing down a few Rabbit Holes I eventually stumbled into the world of Pi Apps.
Pi Apps is a neat little app that provides access to the “most popular app store for RaspberryPi computers”. It’s 100% free, OpenSource and written in shell scripts. Perfect!
Installing the “Pi Apps” app is straight forward and only takes a few moments.
Pi-Apps – App store for RaspberryPi
Opening Pi-Apps I found a multitude of OpenSource apps all ready to be installed at the click of a button. In no time at all I’d found Signal and had it installed without getting anywhere near the dreaded Snap.
The version of Signal available at the time of writing this article is v7.39.0 which is fine as this is a stable, bug free version that works reliably.
If you’re using a RaspberryPi computer I can highly recommend you install the Pi-Apps app to enhance your collection of great OpenSource programmes to make your little raspberry flavoured buddy even more useful.
Regular readers of my blog will already know that I am a huge fan of the Linux operating system, it’s clearly evident in most of the content on this website.
I am also a very enthusiastic user of one of the first credit card sized computers that came to be, namely the RaspberryPi. I own all the iterations of this wonderful little computer from the very first version to the latest and greatest, RaspberryPi 5.
This little computer has done more for computing in education than Microsoft and Apple will ever achieve and it’s done it at an incredibly low price making it more accessible to schools, colleges and students than any other platform.
The RaspberryPi has what most consider to be the best support on the planet when it comes to single board computers (SBCs). From the dedicated team that build Raspberry Pi OS, to all the amazing projects and forums that are available, for free on the internet today.
The RaspberryPi computer really has revolutionised computing for the masses.
My RaspberryPi 5 that I am using to write this article.
Raspberry Pi OS really is very good. It’s based on the great Debian distro’ that many of us seasoned Linux users dearly love. It’s light weight, fast and meets the needs of everyone that is venturing into the exciting world of Linux and SBCs for the first time.
Overtime as we all become more experienced with Linux on the RaspberryPi we become more demanding and start to find the Raspberry Pi OS desktop environment lacking. Sure it can be enhanced by adding more and more to it however, it never quite reaches the point of satisfaction and we are always wishing for something more.
With the Pi-5, the latest iteration of this great credit card sized computer, users are now able to seriously think about building a more powerful desktop environment for their little berry flavoured computers.
On my desktop PCs dotted around the house I have used Kubuntu for decades. It’s a slick and powerful desktop environment that has met my needs for many years and I love it more than any other Linux desktop. Sadly Kubuntu isn’t easily available out the box for the RaspberryPi and so I decided that it was time to replicate it as closely as possible on my new, super powerful RaspberryPi 5.
When I ordered my RaspberryPi 5 from Pimoroni I added the NVMe base and 250GB M.2 SSD drive to the order. Up until now I’d always used SD cards however, they are slow and unreliable and so I decided that since the Pi-5 has PCIe it was time to take the step away from SD cards and start using SSD technology.
Getting the OS onto the SSD is a two stage affair. First you have to create a bootable SD card to boot the Pi-5 from and then use it via the RaspberryPi Imager to install the OS onto the SSD. It’s a bit long winded but, easy enough.
Since I’m a huge Kubuntu fan I decided my desktop of choice for my new Pi-5 was going to be KDE-Plasma. I had tried to install this desktop before on older model Pi’s however, it ran so slow that it was unusable. With the new Pi-5’s increased computing power and the speed of the SSD I was confident that this was now possible.
I started out installing the Lite version of Raspberry Pi OS on the SSD. This is a command line only version of Linux that doesn’t include any desktop environment, a nice clean slate to start from.
RaspberryPi Imager showing Pi OS Lite (64bit)
Once the Lite version of the OS was installed on the SSD I shutdown the Pi-5 and removed the SD card and then powered the Pi-5 back up again so that it booted from the SSD.
Upon booting I was presented with the simple Linux Login prompt. After entering my username and password as setup during OS install I landed at the Linux command prompt.
sudo su -
I used sudo to become root user as shown above and then set about building my new KDE based super computer. First I needed to update the operating system with all the latest patches and security fixes.
apt update && apt dist-upgrade
The update and upgrade process ran for a while but, it was soon complete.
reboot
I issued the reboot command and then logged back in again, I was now ready to start building the KDE desktop environment.
sudo su -
apt install kde-plasma-desktop gldriver-test
Becoming root again I type the command to install the KDE-Plasma desktop and the graphics-related config services. There’s a lot of packages to download and install so, I left it to do its thing.
A little while later all the packages were installed and ready to go. I now needed to tell the system to boot into the new graphical user interface instead of the command prompt using systemctl.
systemctl set-default graphical.target
Once this was done I needed to make a change to the display settings using the raspi-config program.
raspi-config
Selecting No.2 on the menu, Display Options and then D2 Screen Blanking, I disabled screen blanking so that I got the full 4K support for my KDE Desktop.
Once the system had been configured for a graphical user interface there was only one thing left to do and that was to shutdown the RaspberryPi.
shutdown -h now
The beautiful KDE-Plasma Desktop on RaspberryPi 5
Powering the Pi-5 back up again I was greeted by the standard KDE Plasma login screen and then, after logging in I was transported to the beautiful KDE desktop. I was now smiling like a Cheshire cat!
The KDE desktop is incredibly snappy on the Pi-5 with an SSD, app’s open instantly and run with minimum CPU exertion. It was now time to load the rest of the KDE application suite to complete the build. Popping open a terminal I hit the command line once more.
sudo su -
apt install kde-full vim yakuake vlc firefox rsyslog
This loads the full set of KDE applications adding just about everything you’ll ever need to the desktop environment. It’s about 1GB of packages and so depending on your internet speed it could take a while but, it’s well worth the wait.
Once complete you are ready to go with a fully functional, snappy, powerful desktop.
I’m extremely pleased with the performance of the Pi-5. KDE is super fast, snappy and responsive. With 8GB of RAM on tap the RaspberryPi has no problem with performance. The Pi-5 and KDE-Plasma really do make a great desktop computer at an incredible cheap price.
Looking for a new computer?
Add a cheap USB sound card and a pair of speakers and this little setup will meet the needs of 90% of the population with ease and go on to satisfy the more seasoned, demanding Linux user or programmer without breaking the bank.
More soon …
We use cookies to ensure that we give you the best experience on our website. If you continue to use this site we will assume that you are happy with it.
